Skills-independent and CNC-quality weld profiling for uniform and superior fatigue strength improvement
The MAX TM401 is a mobile 6-axis CNC robot featuring custom PLC software, precision hydraulics and motion control for automatic XYZ-positioning of the machining tool to ±0.2 mm:

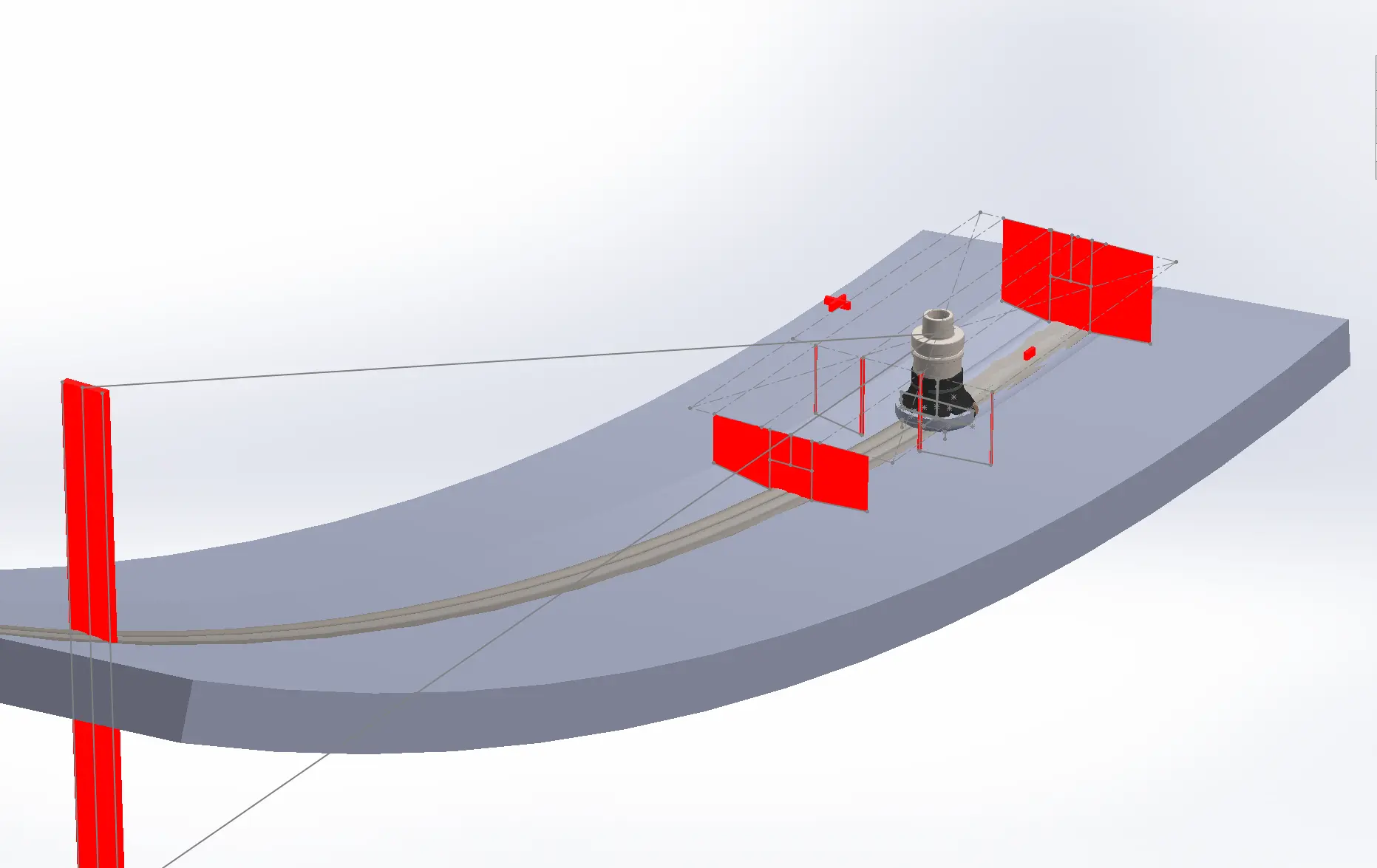

- Laser-guided tracking and laser-controlled machining to flush (large-radius) or below weld toe level
- Repeatable-quality removal of both weld face and weld toe undercuts in a single pass operation
- Algorithm controlled profiling of different weld geometries, including offsets and thickness transitions
- Up to 1,200 mm/min. weld profiling with a <3.2 μm Ra surface finish
- 75 dB and dust-free operation with cyclone-action vacuum evacuation of shavings to dedicated container
Datasheets
Download the operational performance and technical datasheet covering the TM401 Weld profiling robot system (Weld profiling robot, Vacuum evacuation system and lifting yoke).
Download datasheet covering TM401 Elevation platform options for operating the TM401 Weld profiling robot at hight and addressing outside girth/circumferential weld seams.
